DIN 97-開槽沉頭木牙螺釘 標準查詢

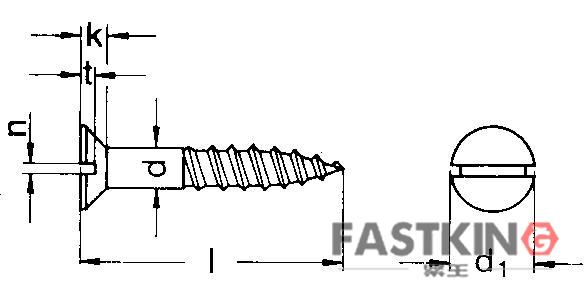

         DIN 97



         *All measurements in millimeters (mm)*










				d


				d1


				k


				n


				t max.






				M2


				3.8


				1.2


				0.5


				0.6






				M2.5


				4.7


				1.5


				0.6


				0.7






				M3


				5.6


				1.65


				0.8


				0.85






				M3.5


				6.5


				1.93


				0.8


				1






				M4


				7.5


				2.2


				1


				1.1






				M4.5


				8.3


				2.35


				1


				1.2






				M5


				9.2


				2.5


				1.2


				1.3






				M5.5


				10.2


				2.75


				1.2


				1.4






				M6


				11


				3


				1.6


				1.6






				M7


				12.5


				3.5


				2


				1.9






				M8


				14.5


				4


				2


				2.1









         All information is strictly informative
