DIN96-開槽半圓頭木牙螺釘 標(biāo)準(zhǔn)查詢

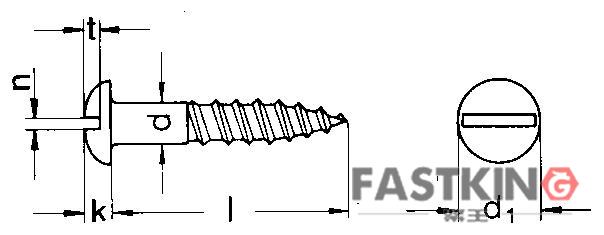

         DIN 96



         *All measurements in millimeters (mm)*










				d


				d1


				k


				n


				t max.






				M2


				4


				1.4


				0.5


				0.9






				M2.5


				5


				1.7


				0.6


				1.1






				M3


				6


				2.1


				0.8


				1.35






				M3.5


				7


				2.4


				0.8


				1.6






				M4


				8


				2.8


				1


				1.8






				M4.5


				9


				3.1


				1


				2






				M5


				10


				3.5


				1.2


				2.3






				M5.5


				11


				3.8


				1.2


				2.5






				M6


				12


				4.2


				1.6


				2.7






				M7


				14


				4.9


				2


				3.2






				M8


				16


				5.6


				2


				3.6









         All information is strictly informative
