DIN95-開槽半沉頭木螺釘 標(biāo)準(zhǔn)查詢

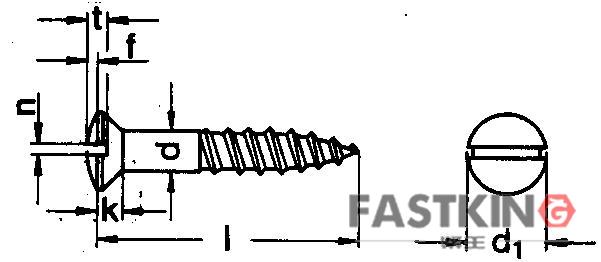

         DIN 95



         *All measurements in millimeters (mm)*










				d


				d1


				k


				f approx.


				n


				t max.






				M2


				3.8


				1.2


				0.5


				0.5


				1






				M2.5


				4.7


				1.5


				0.6


				0.6


				1.2






				M3


				5.6


				1.65


				0.75


				0.8


				1.45






				M3.5


				6.5


				1.93


				0.9


				0.8


				1.7






				M4


				7.5


				2.2


				1


				1


				1.9






				M4.5


				8.3


				2.35


				1.1


				1


				2.1






				M5


				9.2


				2.5


				1.25


				1.2


				2.3






				M6


				11


				3


				1.5


				1.6


				2.8









         All information is strictly informative
