DIN 188-T型帶榫螺栓 標(biāo)準(zhǔn)查詢

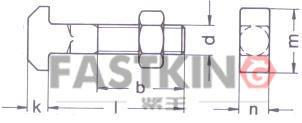

         DIN 188



         *All measurements in millimeters (mm)*










				d


				b


				k


				m


				n






				M8


				22


				5.5


				18


				8






				M10


				26


				7


				21


				10






				M12


				30


				8


				26


				12






				M16


				38


				10.5


				30


				16






				M24


				54


				15


				43


				24









         All information is strictly informative
