DIN137-A 彈簧止動(dòng)墊圈 標(biāo)準(zhǔn)查詢











					DIN 137

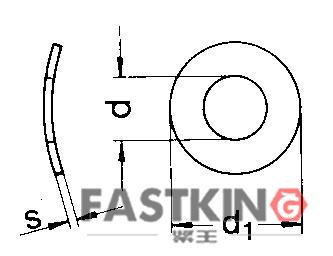

        Form A = Curved
















         *All measurements in millimeters (mm)*










						d






						for screw






						d1






						s










						2.2






						M2






						4.5






						0.3










						2.8






						M2.5






						5.5






						0.3










						3.2






						M3






						6






						0.4










						3.7






						M3.5






						7






						0.4










						4.3






						M4






						8






						0.5










						5.3






						M5






						10






						0.5










						6.4






						M6






						11






						0.5










						7.4






						M7






						12






						0.5










						8.4






						M8






						15






						0.5










						10.5






						M10






						18






						0.8









         All information is strictly informative
